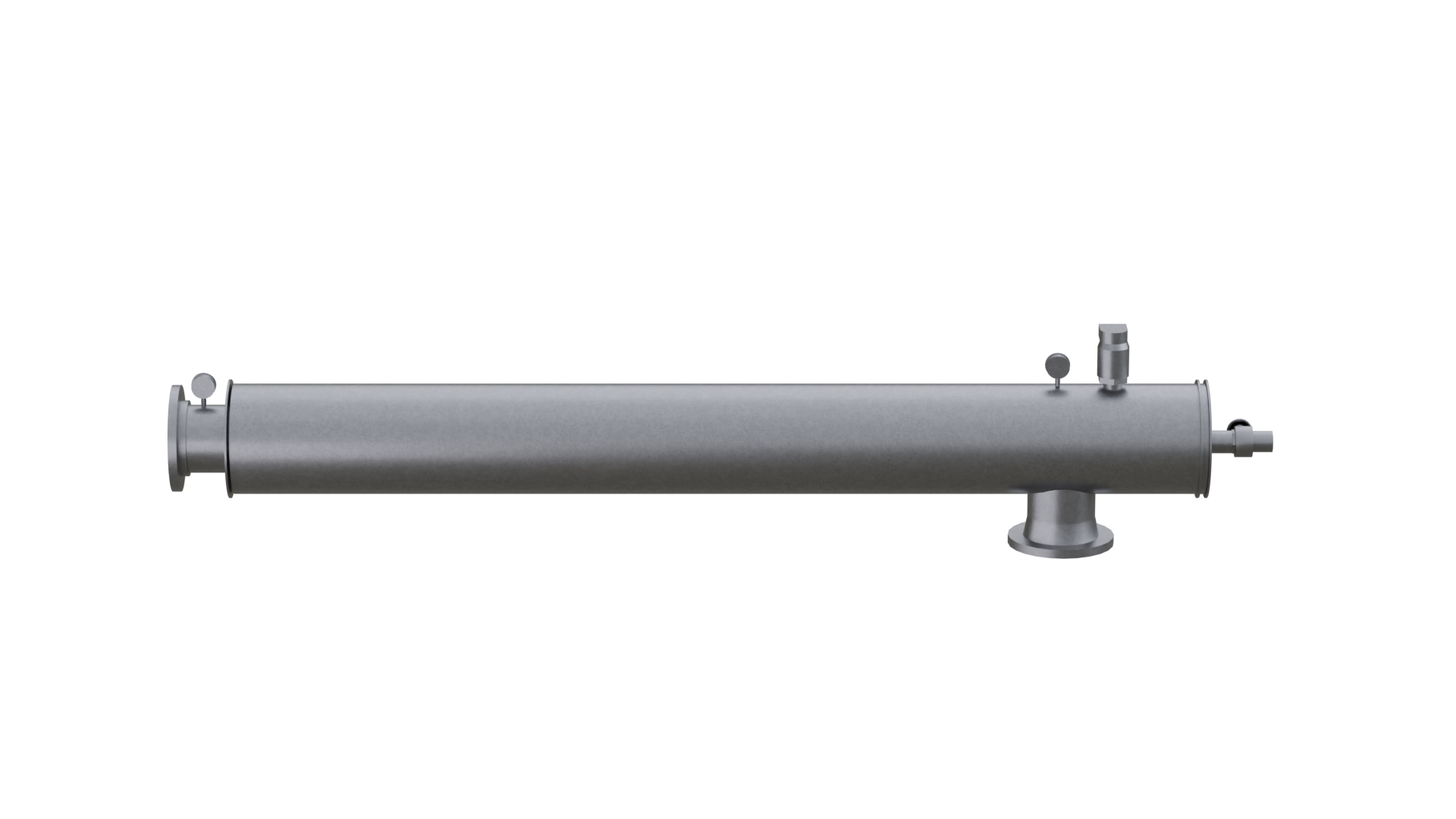

Clemons Pressure Filters™️
The Clemons Pressure Filters™️ are the perfect way to keep your irrigation system running smoothly. Remove sediment and other contaminants from the water, which protect your sprinkler heads and other equipment from damage.
Filters support 80 to 2000 GPM with a variety of configurations to meet your connection requirements. Clemons offers solutions for applications with higher flow rates as well.
Clemons Pressure Filters™️ are essential to optimizing and maximizing crop yield.
Configurations to meet any challenge.

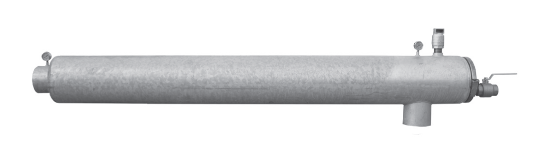

Bare Standard Down

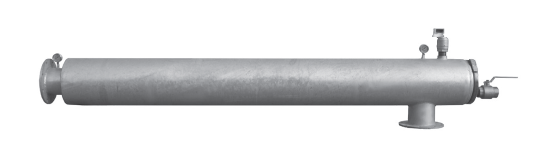

Flanged Standard Down

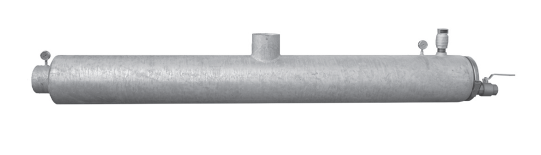

Bare Center Up

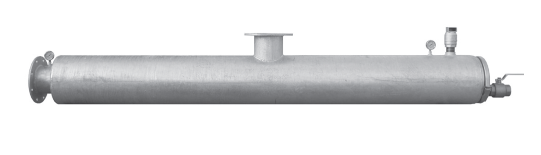

Flanged Center Up

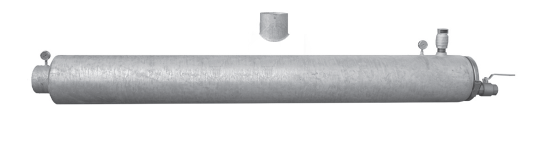

Bare Loose

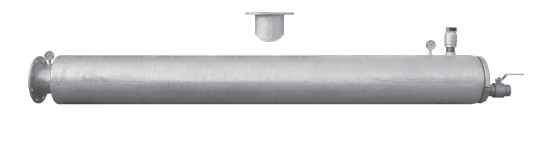

Flanged Loose
Options
Screen Perforated options: 3/16” 3/32” 3/64” 1/32” 1/8” 1/4”
Standard 3/32”
Available in black, galvanized, stainless steel, or painted.
10 GA, 12 GA, and Quarter Wall.

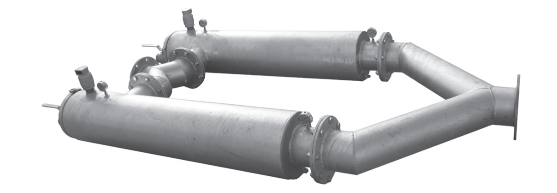

Large Capacity
Connect multiple pressure filters for high-capacity filtering needs.
| Model | GPM | Length | Weight |
|---|---|---|---|
| M-80 | 70 | 27" | 29 |
| M-150 | 13 | 39" | 42 |
| 275A | 275 | 68" | 70 |
| 475A | 475 | 70" | 130 |
| 700A | 700 | 77" | 170 |
| 1200A | 1200 | 130.5" | 250 |
| 2000A | 2000 | 139.8" | 412 |
Specify with confidence.
Download the specifications for the Clemons Pressure Filters and spec your next job with confidence.
Benefits
Protection
Clemons Pressure Filters™️ remove sediment and other contaminants from the water, preventing damage to sprinkler heads and other irrigation equipment. This saves you money on repairs and maintenance costs.
Longevity
Clemons Pressure Filters™️ extend the life of your irrigation system by removing contaminants from the water that would otherwise cause wear and tear on your pipes, valves, sprinklers, and other irrigation components.
Performance
Clemons Pressure Filters™️ improve the performance of your irrigation system by delivering cleaner, more consistent water to your sprinkler heads. This leads to better coverage and uniformity of your irrigation, saving you water and money.
Easy to Install and Maintain
Durable and Reliable
Backed by a Warranty
